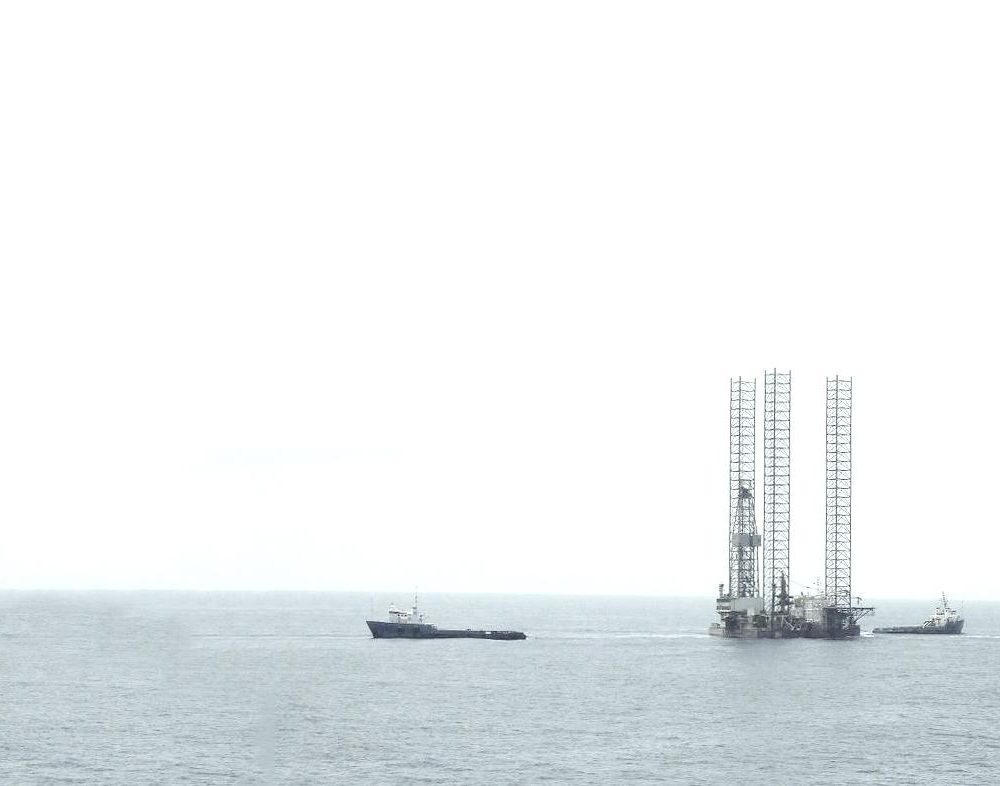

Introduction of M.O.D.U. SEA BREEZE 1

Item

Description

Remarks

1

Designer

Rauma Repola (Finland)

2

Year of Construction

1995

3

Design

F&G (Friede & Goldman) L-780, M.O.D.U. II, Self Elevating C.L.

4

Type

Jack Up Cantilever (Jack Up Cantilever Drilling Barge)

5

Classification

Under ABS, GL & KR (Present)

6

Refurbished

 1) By Rauma Repola in 1999

 2) By Golden Shaheen in 2004

3) Local Contractors at site 2010 & 2015

7

Flag

Panama(Turkmenistan Admission Granted And Formalities In  Progress)

Summary Spec. of MODU SEA BREEZE 1

Item A: Main Dimensions of the Unit Remarks
1 Light Ship Weight 6272 Tons
2 Main Deck Width 53.34 m
3 Main Deck Length 54.86 m
4 Main Deck Depth 7.62 m
5 Longitudinal Distance Between Legs 36.6 m
6 Transversal Distance Between Legs 39.25 m
7 Cantilever 54 ft. Max. FWD. / BKWD. With 750,000 lb. load, 9.9

ft. transverse on each side
8 Accommodation 80+2 Beds
Item B: Unit Classification Remarks
1 Hull Classification Formerly ABS, GL & KR (Present)
2 Machinery Classification API
Item C: Performance Remarks
1 Water Depth 300 ft. (91.44 m)
2 Drilling Depth 20,000 ft. (606.01 m)

Short Specification of M.O.D.U. SEA BREEZE 1

Item D: Drilling Equipment Remarks
1 Drawworks National Oilwell 1625 UDBE (2,000 HP) with

BAYLOR ELMAGCO Aux. Brake
2 Mud Pumps Two National 12-P-160 7,500 PSI

One BOMCO F-1600 HL 7,500 PSI
3 Prime Mover Five CAT. 3516, DITA, 1316 HP Each, 1200 RPM.
4 Rotary Table National Oilwell 37.5” 650 t.
5 Top Drive DQ 450
6 B.O.P. System Cameron

20-3/4” – 3000 PSI

13-5/8”- 10,000 & 15,000 PSI
7 Cement Unit SERVA SJS TPH 400, 15K PSI
Item E:Storage Capacity Remarks
1 Mud Bulk 124 m³
2 Cement Bulk 140 m³
3 Liquid Mud 314 m³
4 Fuel 465.6 m³
5 Drilling Water 877.6 m³
6 Water Maker Alpha Laval JWP-26-c 100 , 2×30 t , 1×40 t

R.O.Rochem
7 Potable Water 212.5 m³
8 Sack Storage 3400 No.
